Skinning uPortal

Defining your own skin is one of the most basic changes that makes your uPortal installation your own.

Table of Contents

1. Creating a skin
2. Skin Configuration
3. Special Notes
   1. Dynamic Respondr Skin
   2. Page Effects

Creating a skin

1. Run ./gradlew skinGenerate -DskinName={skinName} to create the skin base files.
2. Navigate to the uportal-war/src/main/webapp/media/skins/respondr folder

3. Edit skinList.xml to point the <skin-name> and <skin-key> to the new skin name. e.g.

   <skin>
       <skin-key>{skinName}</skin-key>
       <skin-name>{skinName}</skin-name>
       <skin-description>
           Basic skin for the Respondr theme based on Twitter Bootstrap and Responsive Design
       </skin-description>
   </skin>


4. Navigate to the data/base/portlet-definition folder

5. Edit dynamic-respondr-skin.portlet-definition.xml and add a <portal-preference> with a <name> of PREFdynamicSkinName and a <value> with the skin name. e.g.

   <portlet-preference>
       <name>PREFdynamicSkinName</name>
       <value>{skinName}</value>
   </portlet-preference>


6. Navigate to the data/base/stylesheet-descriptor folder

7. Edit Respondr.stylesheet-descriptor.xml and change the <default-value> to the skin name. e.g.

   <stylesheet-parameter>
       <name>skin</name>
       <default-value>{skinName}</default-value>
       <scope>PERSISTENT</scope>
       <description>Skin name</description>
   </stylesheet-parameter>


8. Stop Tomcat. (Run ./gradlew tomcatStop if using embedded Tomcat in uPortal-start.)
9. Run ./gradlew :overlays:uPortal:dataInit to apply the changes to the database.
10. Run ./gradlew :overlays:uPortal:tomcatDeploy to build uPortal with the new skin and deploy it to Tomcat.
11. Start Tomcat. (Run ./gradlew tomcatStart if using embedded Tomcat in uPortal-start.)
12. Don’t forget to add the new skin to Git!

Skin Configuration

uPortal uses Less variables to handle global skin changes. Changes can be made to override the Bootstrap variables or the uPortal variables, changes should be made to the skin’s variable.less file.

Special Notes

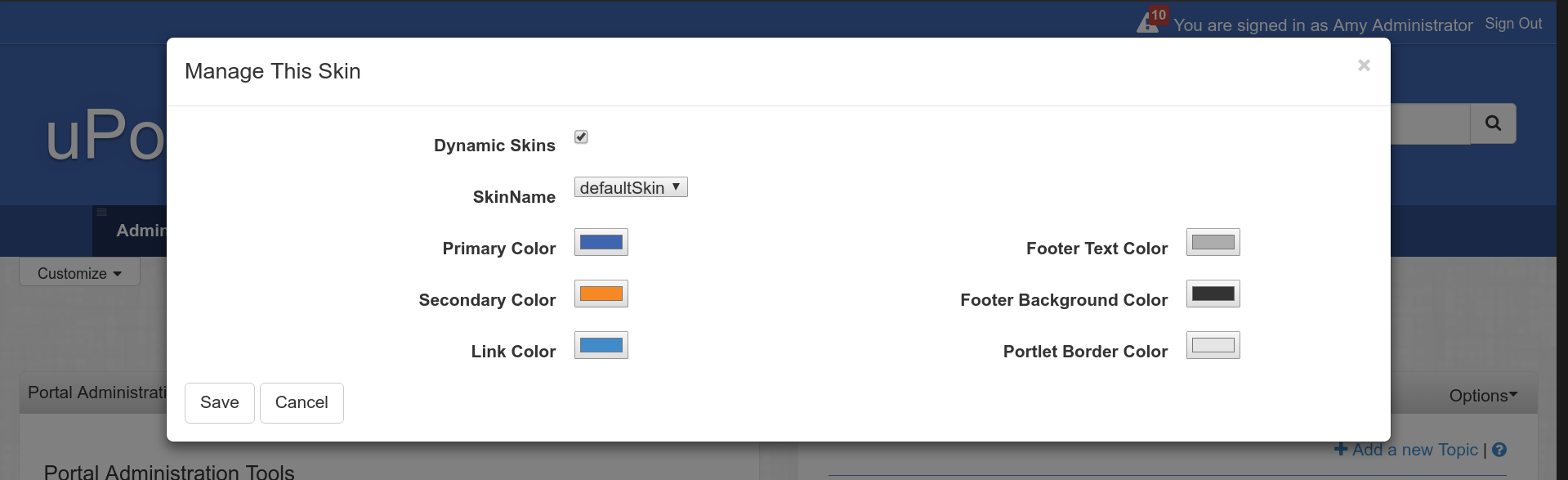

Dynamic Respondr Skin

The color variables 1-6 are the values that the dynamic respondr skin portlet customizes.

@color1
@color2
@color3
@color4
@color5
@color6

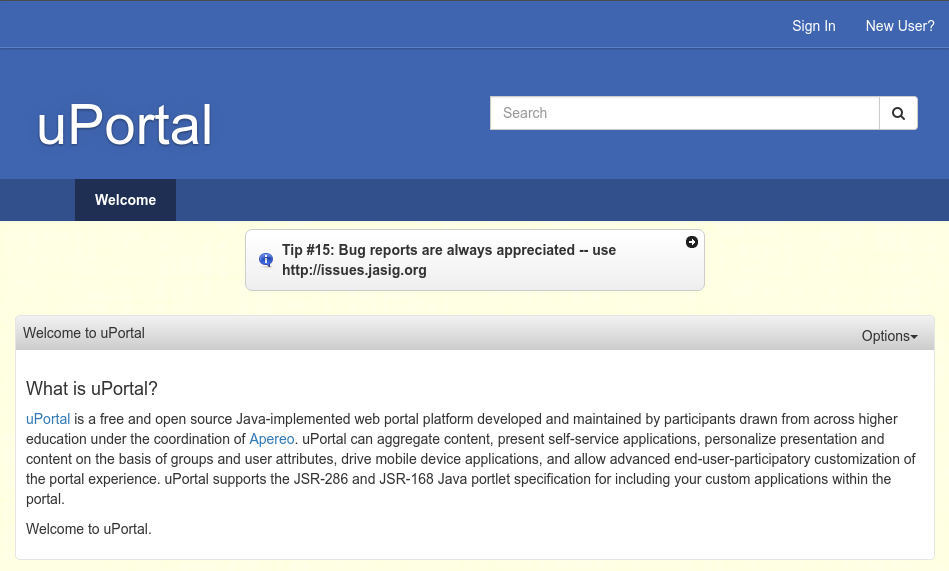

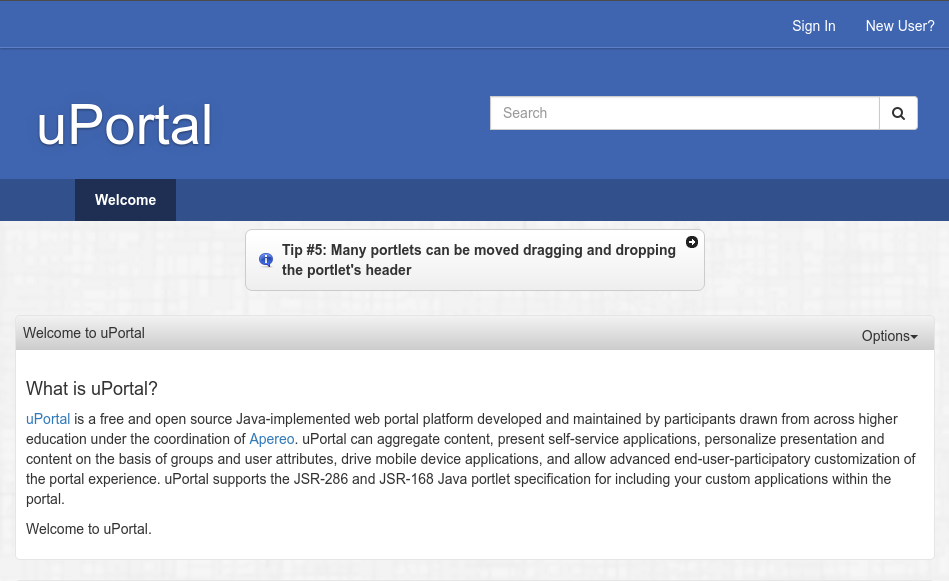

Page Effects

Portal background color and image can have special effects applied. Setting @portal-page-body-background-image-filter allows for any combination css filters to be applied.
